Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Suffix description
C3Internal Clearance Larger Than Normal
Product description

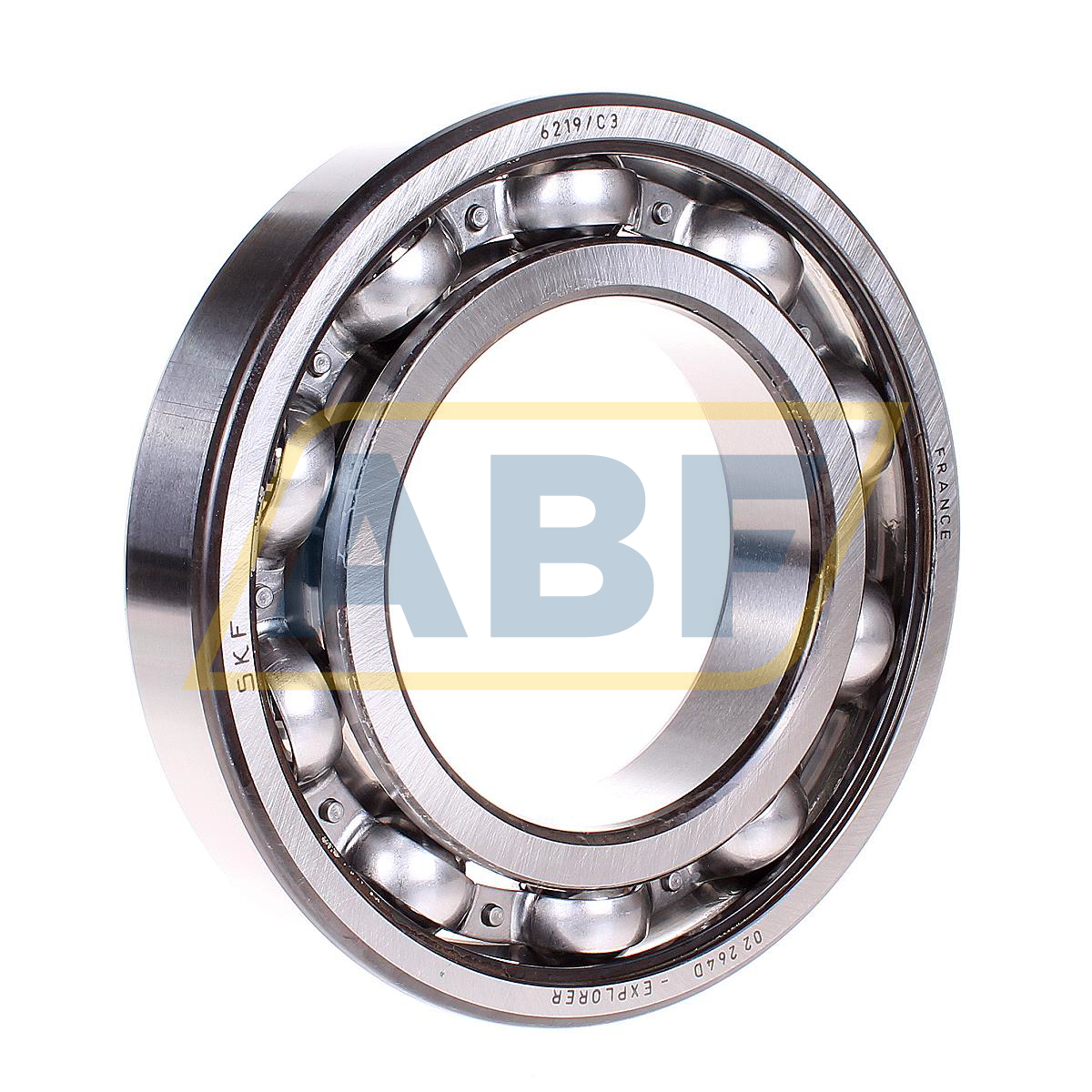

The 6219/C3 SKF has an inner dimension or bore (d) of 95 mm, an outer dimension (D) of 170mm and a width or thickness (B) of 32mm. The 6216C3/VL0241 is open on both sides (it has no seals) and has an internal clearance greater than Normal (C3). The weight of the 6219/C3 SKF is 2,62 kg.
Suffix explanation 6219/C3 SKF
C3: Internal clearance greater than normal. The extra internal clearance allows expansion due to high speeds or temperatures.
About SKF
SKF is the most renowned producer of bearings worldwide. SKF stands for outstanding quality and has been a forerunner in the production of bearings and related items for years. By buying a SKF bearing you are sure to buy top quality.
Related products of the 6219/C3 SKF
6219/C3VL0241 SKF INSOCOAT: The 6219/C3 INSOCOAT bearing from SKF with special coating on the outer ring (VL0241) to protect against bearing damage and eventual failure due to the passage of electric current
