Also known as
6210-2Z/C3
6210-2Z-C3
6210ZZ C3
6210ZZ J30
EAN7316571293950

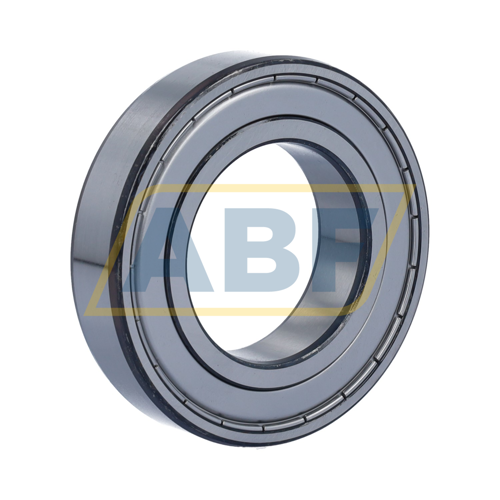

CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
50
Outer (D) MM
90
Width (B) MM
20
Inner (d) Inch
1.9685
Outer (D) Inch
3.5433
Width (B) Inch
0.7874
Weight (kg)
0.47
Product Properties
Bore
C - Cylindrical Bore
Seal
ZZ/2Z - Steel Seal on Two Sides
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Lubrication
High Temperature Grease
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Suffix description
2ZShield Of Pressed Sheet Steel On Both Sides Of The Bearing
C3Internal Clearance Larger Than Normal
WTGrease Fill For Low As Well As High Temperature e.g. Range -40 ~ 160°C. WT Or A Two-Figure Number Following WT Identifies The Actual Grease. An Additional Letter Or Letter/ Figure Combination As Mentioned Under “HT” Identifies Filling Degrees Other Than Standard
