Specifications

• Availability 3 pcs expected on Mon 11 Nov
• Brand FAG
• Item Number 6209 FAG
• Manufacturer Part Number 0167205200000
• Also known as 6209-C

• EAN 4012801071086
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

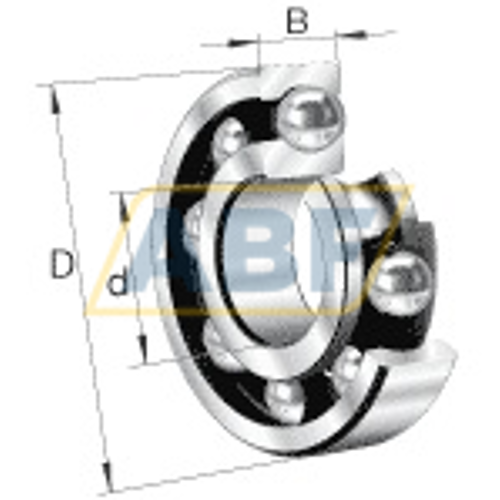

• Inner (d) MM 45
• Outer (D) MM 85
• Width (B) MM 19
• Inner (d) Inch 1.7717
• Outer (D) Inch 3.3465
• Width (B) Inch 0.748
• Weight (kg) 0.404

Product Properties

• Bore C - Cylindrical Bore
• Seal No Seal
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 19
• Radial Static Load Rating C0r (N) 20300
• Radial Dynamic Load Rating Cr (N) 33000
• Basic static load rating, radial (C 0r) "20300.0000"
• Limiting speed (n G) 11600
• Reference speed (n ϑr) 8900
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearing 62, single row, cf. DIN 625-1
