Specifications

• Availability 543 pcs
• Brand FAG

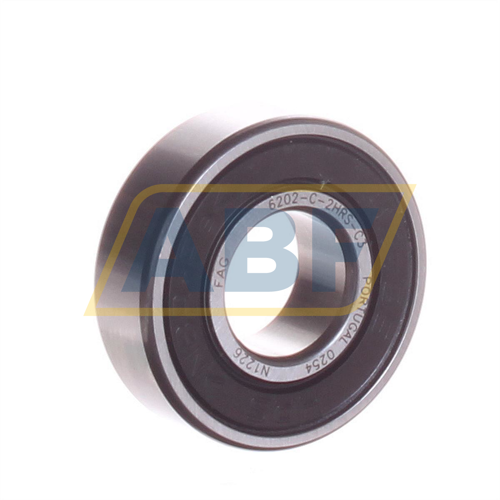

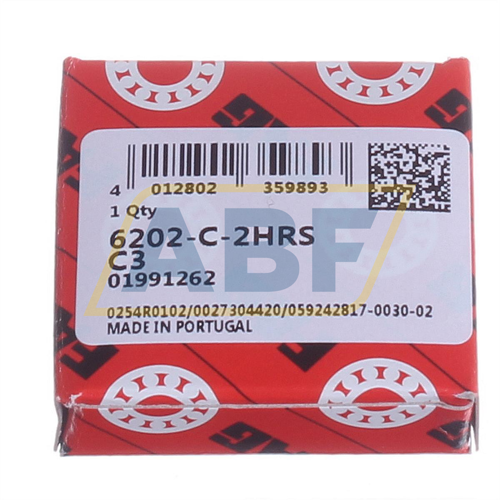

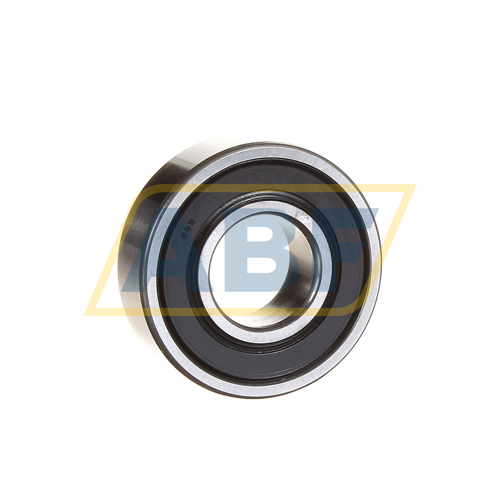

• Item Number 6202-C-2HRS-C3 FAG
• Manufacturer Part Number 0592428170030
• Also known as 6202-2HRS-C3
  6202-2RS1/C3
  6202-2RSH/C3
  6202-2RSR-C3

• EAN 4012802359893
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 15
• Outer (D) MM 35
• Width (B) MM 11
• Inner (d) Inch 0.5906
• Outer (D) Inch 1.378
• Width (B) Inch 0.4331
• Weight (kg) 0.044

Product Properties

• Bore C - Cylindrical Bore
• Seal 2RH - High Speed Low Friction Seal on Two Sides
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play C3 Internal Play (Higher than Cn)
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 11
• Radial Static Load Rating C0r (N) 3750
• Radial Dynamic Load Rating Cr (N) 8900
• Basic static load rating, radial (C 0r) "3750.0000"
• Limiting speed (n G) 19400
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearing 62..-C-2HRS, single row, cf. DIN 625-1
