Specifications

• Availability 5,220 pcs
• Brand FAG

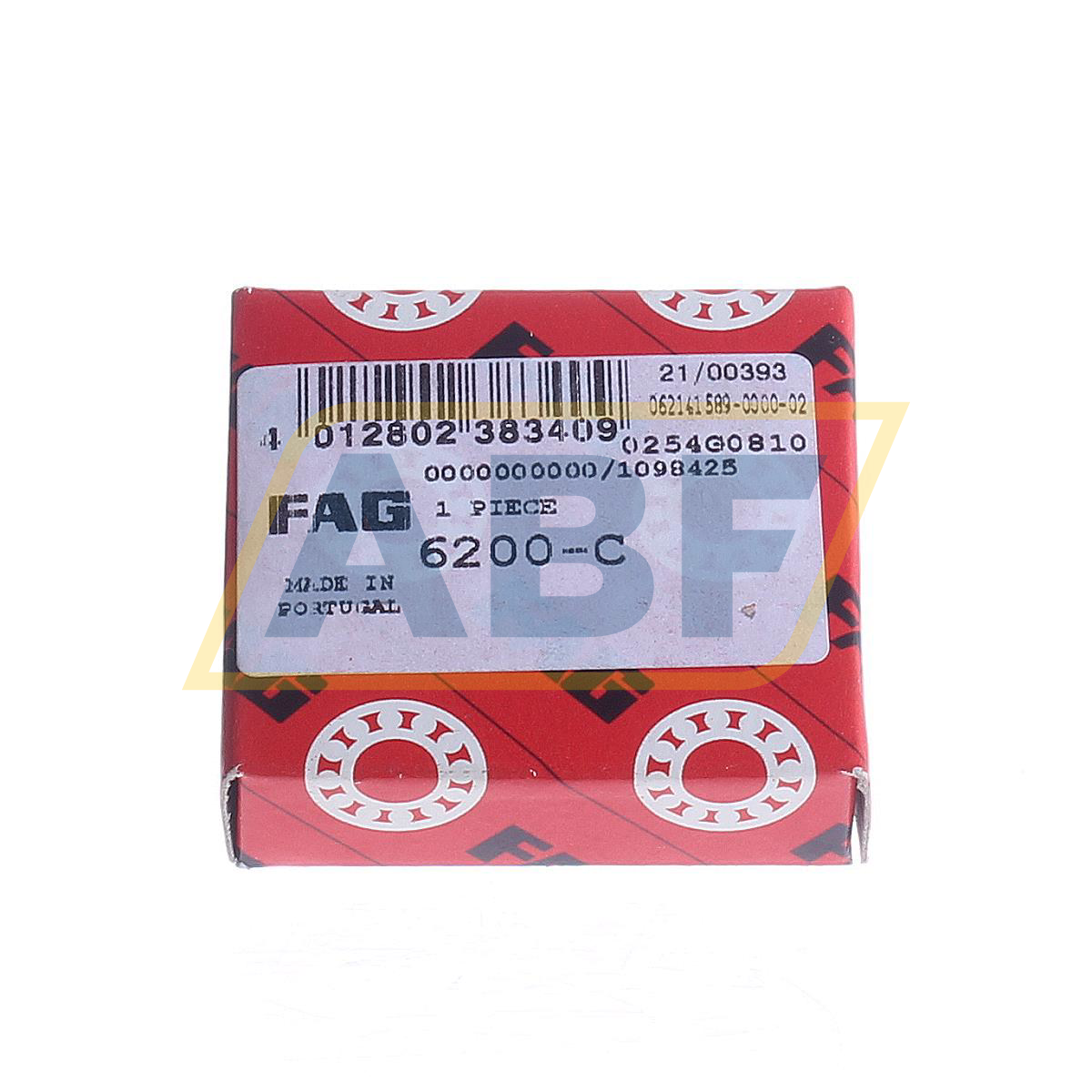

• Item Number 6200-C FAG
• Manufacturer Part Number 0621415890000
• Also known as 6200

• EAN 4012802383409
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 10
• Outer (D) MM 30
• Width (B) MM 9
• Inner (d) Inch 0.3937
• Outer (D) Inch 1.1811
• Width (B) Inch 0.3543
• Weight (kg) 0.032

Product Properties

• Bore C - Cylindrical Bore
• Seal No Seal
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 9
• Radial Static Load Rating C0r (N) 2600
• Radial Dynamic Load Rating Cr (N) 6600
• Basic static load rating, radial (C 0r) "2600.0000"
• Limiting speed (n G) 40500
• Reference speed (n ϑr) 26000
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearing 62..-C, single row, cf. DIN 625-1
