Home › Deep Groove Ball Bearings Single Row › 61801-2Z-HLC FAG

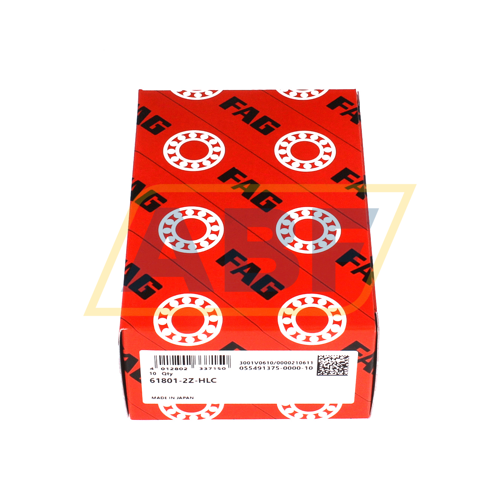

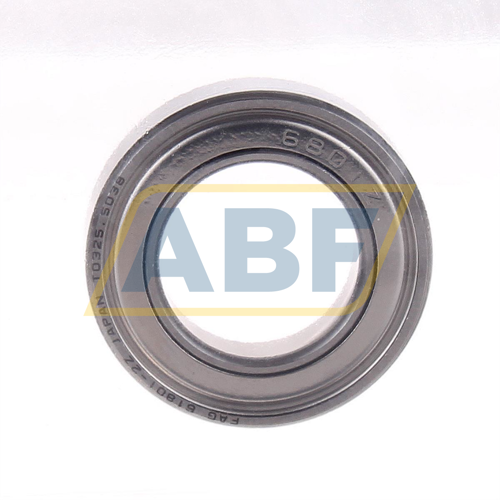

61801-2Z-HLC FAG

Deep groove ball bearings 618..-2Z, main dimensions to DIN 625-1, gap seals on both sides

61801-2Z-HLC FAG

61801-2Z-HLC FAG

61801-2Z-HLC FAG

61801-2Z-HLC FAG

61801-2Z-HLC FAG

61801-2Z-HLC FAG

10 pcs in stock

This product is available from stock
Shipment until 18:00 CET on business days
Payment by invoice possible
Track your order with track & trace
Official Schaeffler distributor

Equivalents 8 equivalents with 744 pcs in stock

61801-2Z-CO7 FAG

300 pcs

1 pc in basket

1 pc on quote list

Or change the QTY
61801-2Z SKF

102 pcs

1 pc in basket

1 pc on quote list

Or change the QTY
61801-ZZ Timken

6 pcs

1 pc in basket

1 pc on quote list

Or change the QTY
6801ZZ NTN

34 pcs

1 pc in basket

1 pc on quote list

Or change the QTY
61801.2Z NKE

75 pcs

1 pc in basket

1 pc on quote list

Or change the QTY
6801ZZCM NSK

3 pcs

1 pc in basket

1 pc on quote list

Or change the QTY
6801ZZ ISB

9 pcs

1 pc in basket

1 pc on quote list

Or change the QTY
61801ZZ Neutral

215 pcs

1 pc in basket

1 pc on quote list

Or change the QTY

Show all equivalents

Specifications

Availability 10 pcs
Brand FAG
Item Number 61801-2Z-HLC FAG
Manufacturer Part Number 0554913750000
Also known as 61801-2Z
EAN 4012802337150
Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

Inner (d) MM 12
Outer (D) MM 21
Width (B) MM 5
Inner (d) Inch 0.4724
Outer (D) Inch 0.8268
Width (B) Inch 0.1969
Weight (kg) 0.006

Product Properties

Bore C - Cylindrical Bore
Seal ZZ/2Z - Steel Seal on Two Sides
Cage Type S - Steel or Standard Cage
External Modification No External Modification
Radial Internal Play Cn Normal Internal Play
Precision Standard Precision
Lubrication Standard Lubrication
Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
Special Treatment No Special Treatment

Data from Schaeffler (medias)

Width (b) mm 5
Radial Static Load Rating C0r (N) 1040
Radial Dynamic Load Rating Cr (N) 1920
Basic static load rating, radial (C 0r) "1040.0000"
Limiting speed (n G) 42500
Reference speed (n ϑr) 23500
ECLASS number 23-05-08-01
ECLASS2 number 23-05-08-01
Medias description Deep groove ball bearings 618..-2Z, main dimensions to DIN 625-1, gap seals on both sides

Suffix description

2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard
