Specifications
Availability100 pcs
BrandFAG
Item Number608-2Z-L077-HLN-R15-23 FAG
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
8
Outer (D) MM
22
Width (B) MM
7
Inner (d) Inch
0.315
Outer (D) Inch
0.8661
Width (B) Inch
0.2756
Weight (kg)
0.012
Product Properties
Bore
C - Cylindrical Bore
Seal
ZZ/2Z - Steel Seal on Two Sides
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Suffix description
2ZNon-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
L077High Temperature Grease For High Loads, -40 To +260°
HLNFactory Location Code, No Additional Meaning, Can Be Used As Standard
R15-23Radial Clearance In µm
Product description

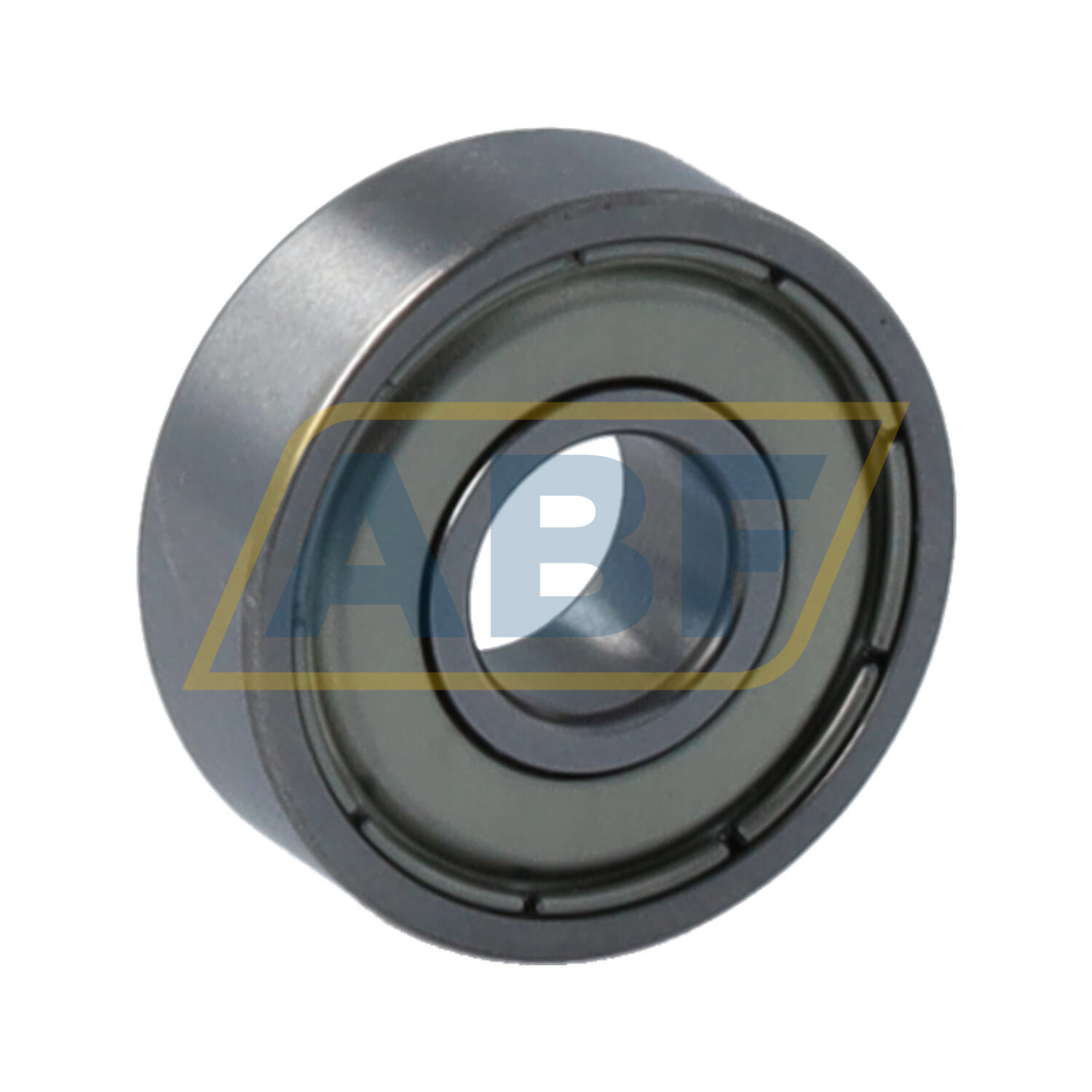

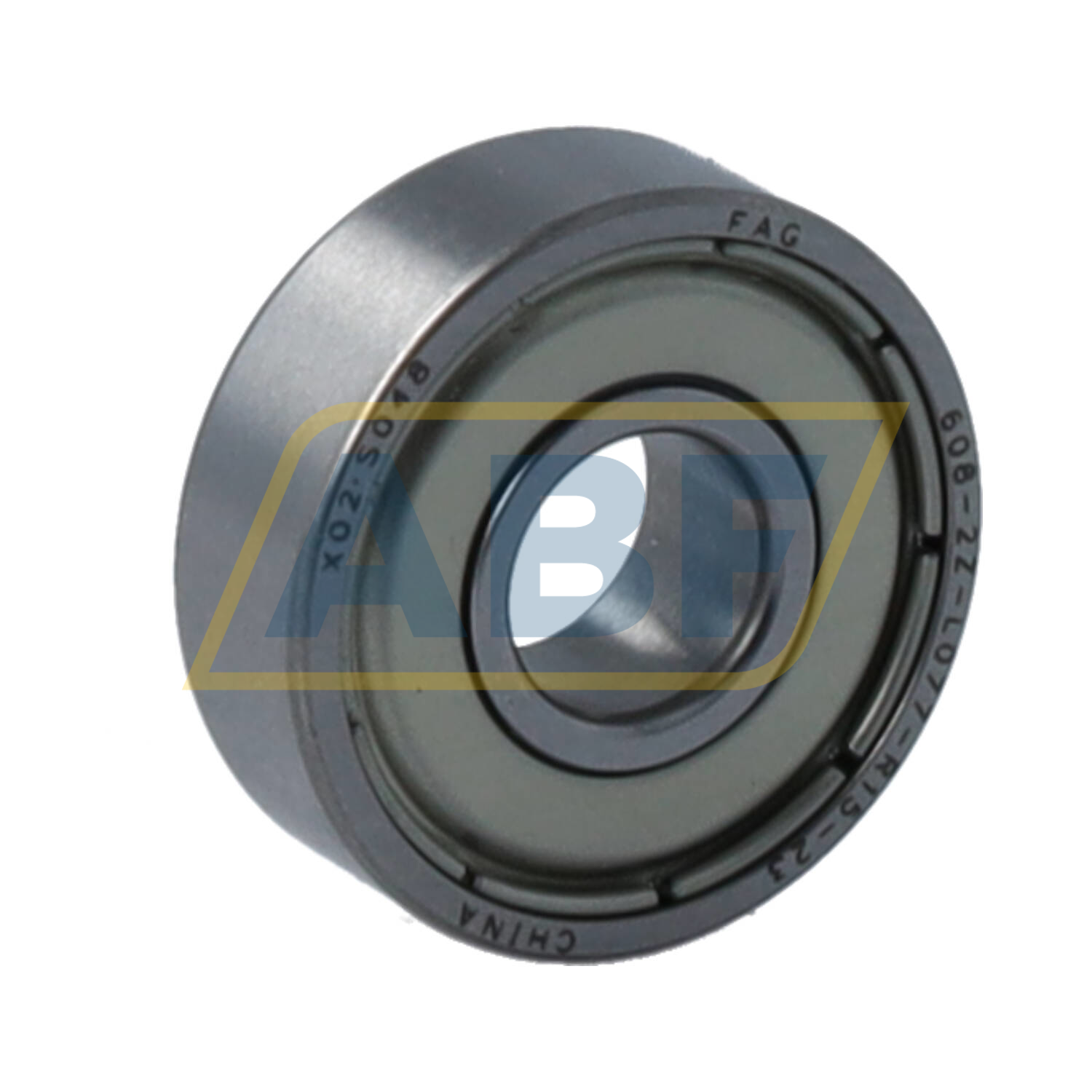

The 608-2Z-L077-HLN-R15-23 FAG is a miniature ball bearing. This is a very small single-row deep groove ball bearing. The design consists of an inner and an outer ring, with a ball and cage assembly in between. Thanks to their simple construction, these bearings require little maintenance. With their compact dimensions, miniature bearings are suitable for applications where space is limited. Additionally, miniature ball bearings boast significant radial load-bearing capacity. They can handle light axial loads as well, offering versatility across a wide range of applications.
The cage of the 608-2Z-L077-HLN-R15-23 FAG ensures that the balls do not touch each other and move in a controlled manner. This generates less heat and enables high speeds. The low friction and quiet operation make them ideal for high-speed and noise-sensitive environments like consumer electronics. Their durability, combined with efficient heat dissipation, ensures long-lasting performance with minimal maintenance, reducing the need for frequent replacements. Miniature ball bearings are widely used in situations where very high rotational rates are required.
