Specifications

• Availability 39 pcs
• Brand FAG
• Item Number 6015 FAG
• Manufacturer Part Number 0167180700000
• EAN 4012801163941

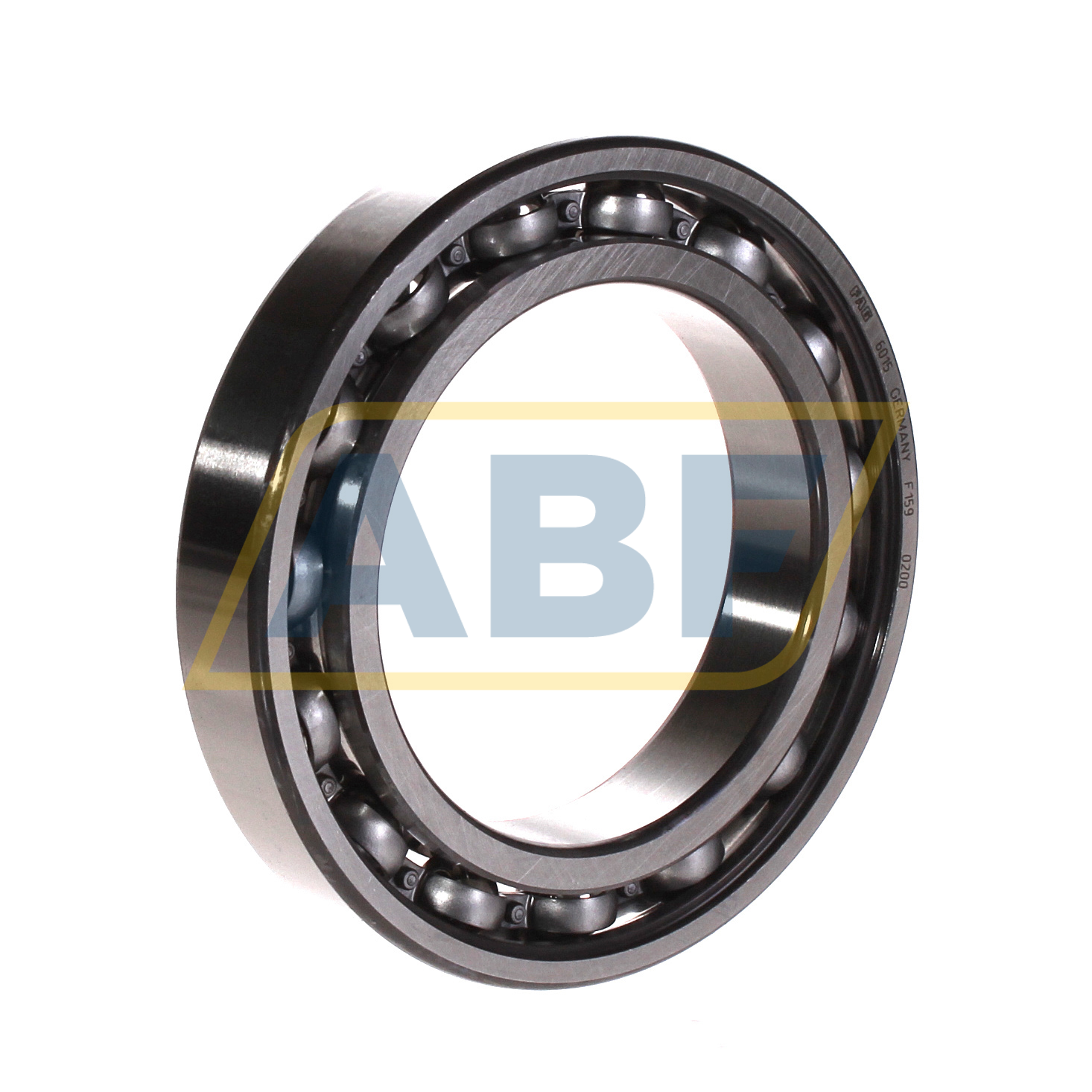

• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 75
• Outer (D) MM 115
• Width (B) MM 20
• Inner (d) Inch 2.9528
• Outer (D) Inch 4.5276
• Width (B) Inch 0.7874
• Weight (kg) 0.647

Product Properties

• Bore C - Cylindrical Bore
• Seal No Seal
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 20
• Radial Static Load Rating C0r (N) 33500
• Radial Dynamic Load Rating Cr (N) 42000
• Basic static load rating, radial (C 0r) "33500.0000"
• Limiting speed (n G) 8100
• Reference speed (n ϑr) 6300
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearing 60, single row, cf. DIN 625-1
