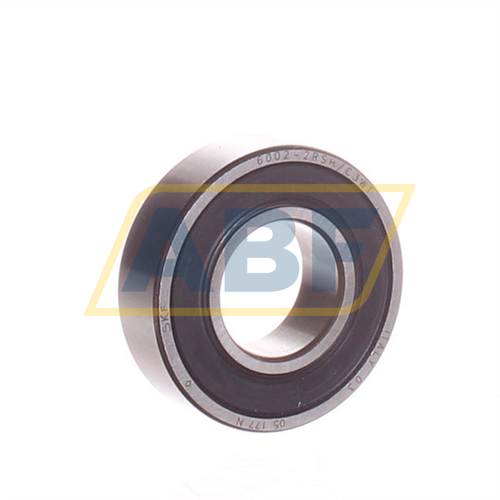

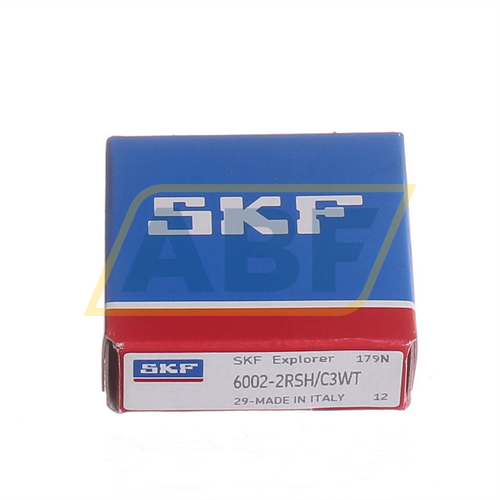

Also known as
6002-2RS1/C3
6002-2RS1/C3WT
6002-2RSH/C3
6002-2RSR-C3
EAN7316572152782
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
15
Outer (D) MM
32
Width (B) MM
9
Inner (d) Inch
0.5906
Outer (D) Inch
1.2598
Width (B) Inch
0.3543
Weight (kg)
0.033
Product Properties
Bore
C - Cylindrical Bore
Seal
2RH - High Speed Low Friction Seal on Two Sides
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Lubrication
High Temperature Grease
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Suffix description
2RSHSheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
C3Internal Clearance Larger Than Normal
WTGrease Fill For Low As Well As High Temperature e.g. -40 ~ 160°C. WT Or A Two-Figure Number Following WT Identifies The Actual Grease. An Additional Letter Or Letter/ Figure Combination As Mentioned Under “HT” Identifies Filling Degrees Other Than Standard
