Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ring
Split inner ring
Data from Schaeffler (medias)
Width (b) mm
58,7
Basic static load rating, radial (C 0r)
137000
Limiting speed (n G)
6700
Reference speed (n ϑr)
4650
Suffix description
DABall Bearing Double Row With Split Inner Ring
MAMachined Brass Cage, Outer Ring Guided
C3Internal Clearance Larger Than Normal
Product description

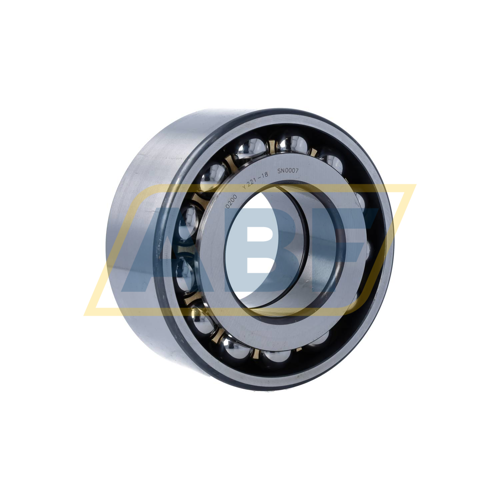

The 3313-DA-MA-C3 FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

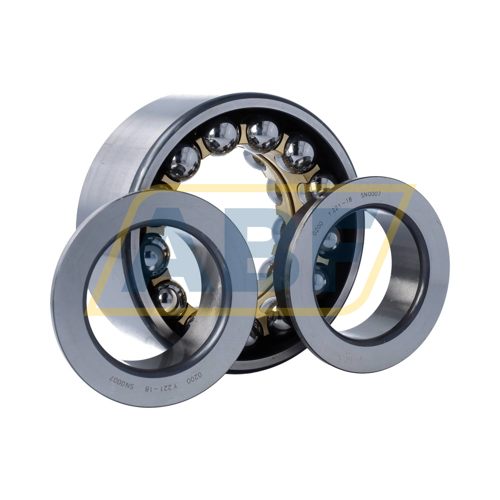

The 3313-DA-MA-C3 FAG has a split inner ring. This bearing type combines a large number of balls with a large contact angle. This design makes the bearing suitable for higher axial loads in both directions. Bearings with split inner rings generally have a tighter fit than bearings with single-piece inner rings.
