Loading equivalents
Specifications
Availability26 pcs
BrandFAG

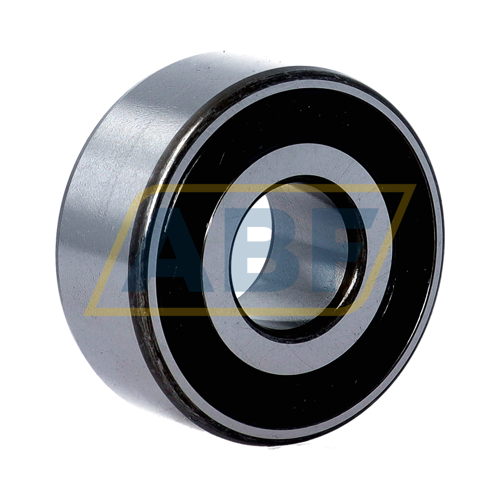

Item Number3304-BD-XL-2HRS-TVH-L405 FAG
Manufacturer Part Number0868565100000
Also known as
3304-BD-2HRS-TVH-L405
EAN4054369018691
CategoryAngular Contact Ball Bearing Double Row
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
52
Width (B) MM
22,2
Inner (d) Inch
0.7874
Outer (D) Inch
2.0472
Width (B) Inch
0.874
Weight (kg)
0.22
Product Properties
Bore
C - Cylindrical Bore
Seal
2RH - High Speed Low Friction Seal on Two Sides
Cage Type
P - Plastic Molded Cage
External Modification
No External Modification
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ring
Standard
Data from Schaeffler (medias)
Width (b) mm
22,2
Basic static load rating, radial (C 0r)
15900
Limiting speed (n G)
11000
Suffix description
BDModified Internal Construction, Contact Angle α=30°, Without Filling Slot
XLX-Life
2HRSLip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
TVHMoulded Polyamide Cage Snap-Type, Rolling Element Riding
