Specifications
Availability11 pcs
BrandSKF
Item Number22320EK/C3 SKF
EAN7316570705362
CategorySpherical Roller Bearing
Weight and Dimensions
Inner (d) MM
100
Outer (D) MM
215
Width (B) MM
73
Inner (d) Inch
3.937
Outer (D) Inch
8.4646
Width (B) Inch
2.874
Weight (kg)
11.71
Product Properties
Bore
K - 1:12 Tapered Bore (Standard for Most Types)
Lubrication Enhancement
W33 - Lubrication Groove and 3 Holes
Seal
No Seal
Cage Type
S - Steel or Standard Cage
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution
Non Vibrating Screen Execution
Suffix description
Ed ≤65mm, Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Centered On The Inner Ring. When d >65 mm Same As <65mm But Guide Ring Centered On The Cages
KTapered Bore, Taper 1:12
C3Internal Clearance Larger Than Normal
Product description

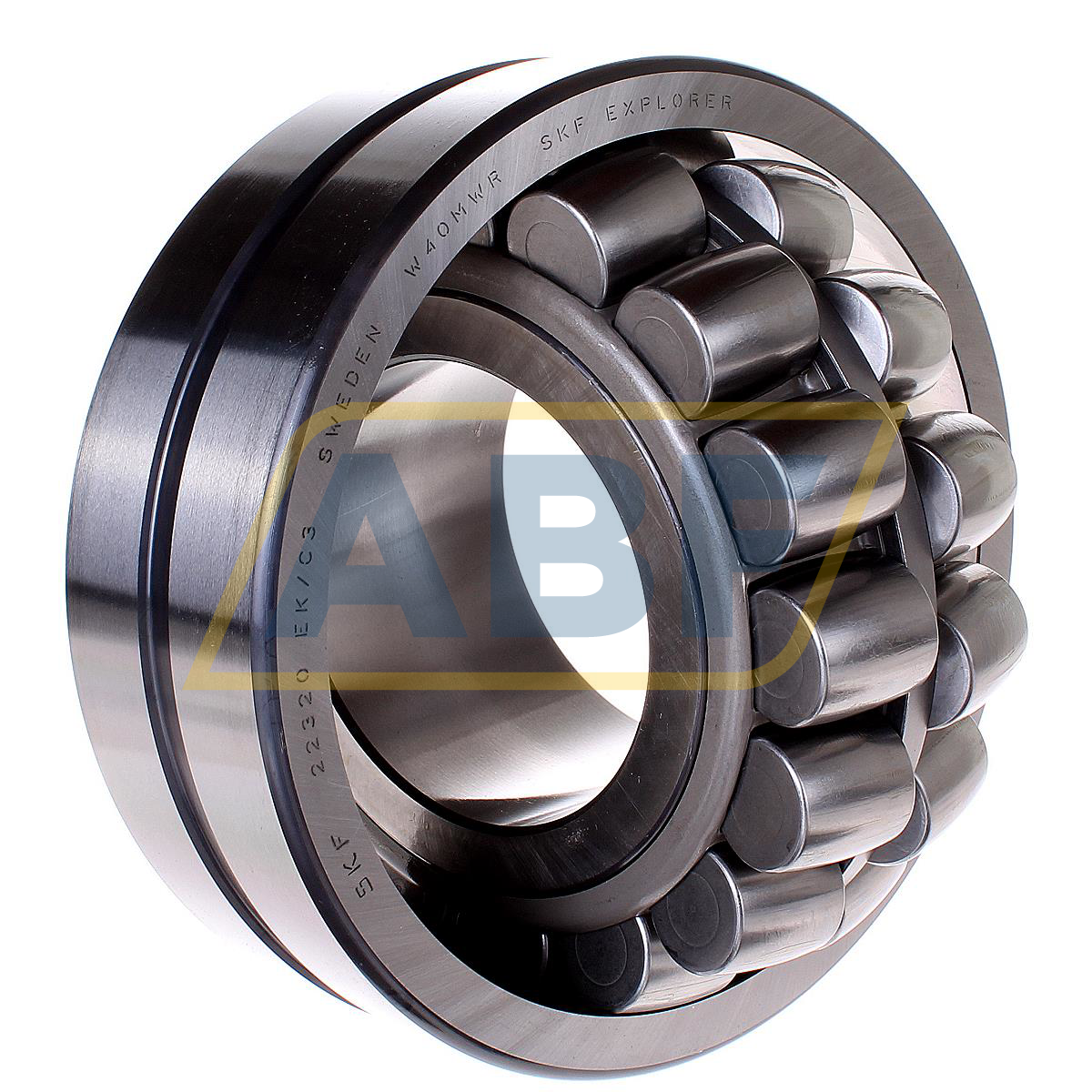

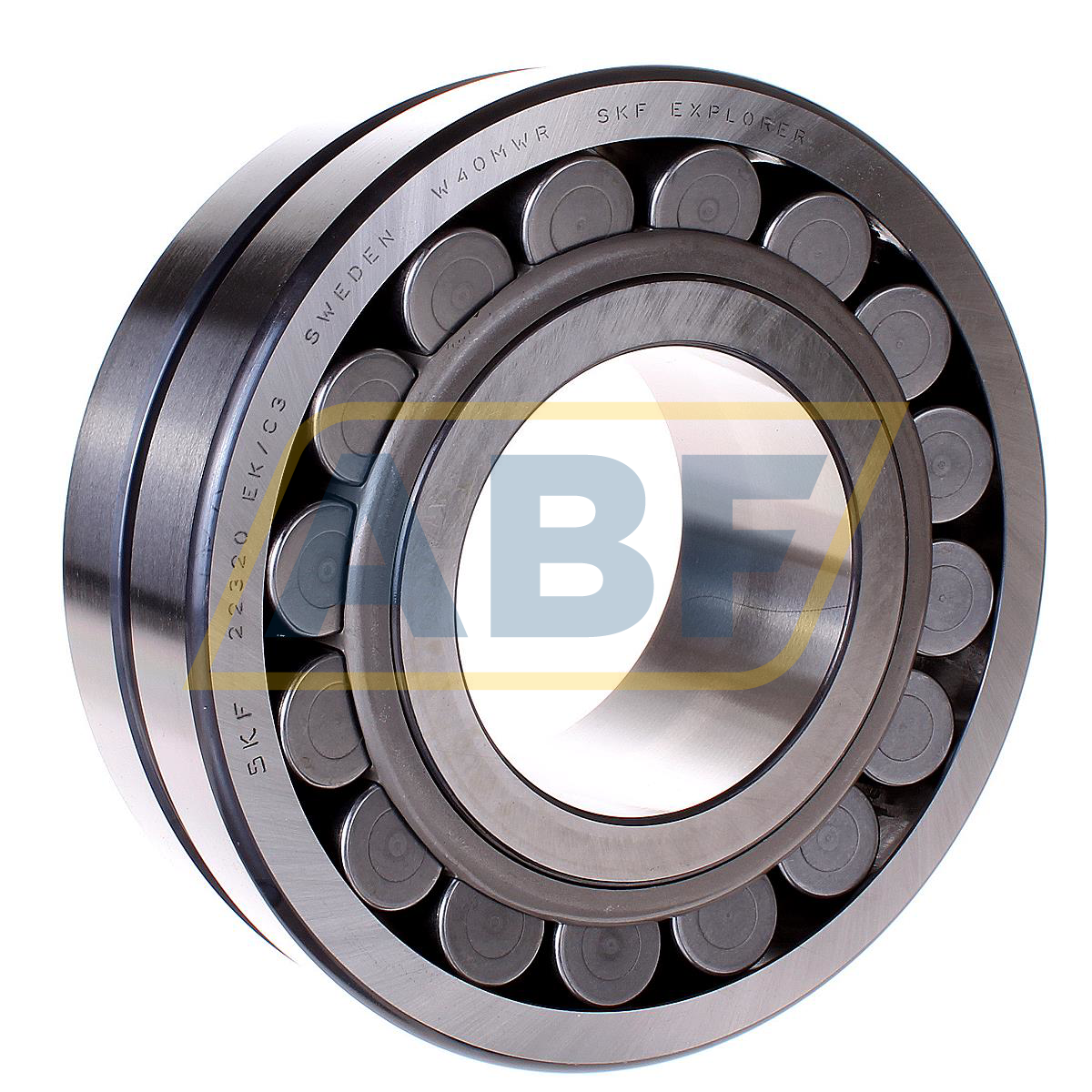

The 22320EK/C3 SKF is a spherical roller bearing with an open design. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.
