Specifications
Availability4 pcs
BrandSKF
Item Number2220 SKF
EAN7316571482170
CategorySelf Aligning Ball Bearing Double Row
Weight and Dimensions
Inner (d) MM
100
Outer (D) MM
180
Width (B) MM
45
Inner (d) Inch
3.937
Outer (D) Inch
7.0866
Width (B) Inch
1.7717
Weight (kg)
5.24
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
S - Steel or Standard Cage
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Product description

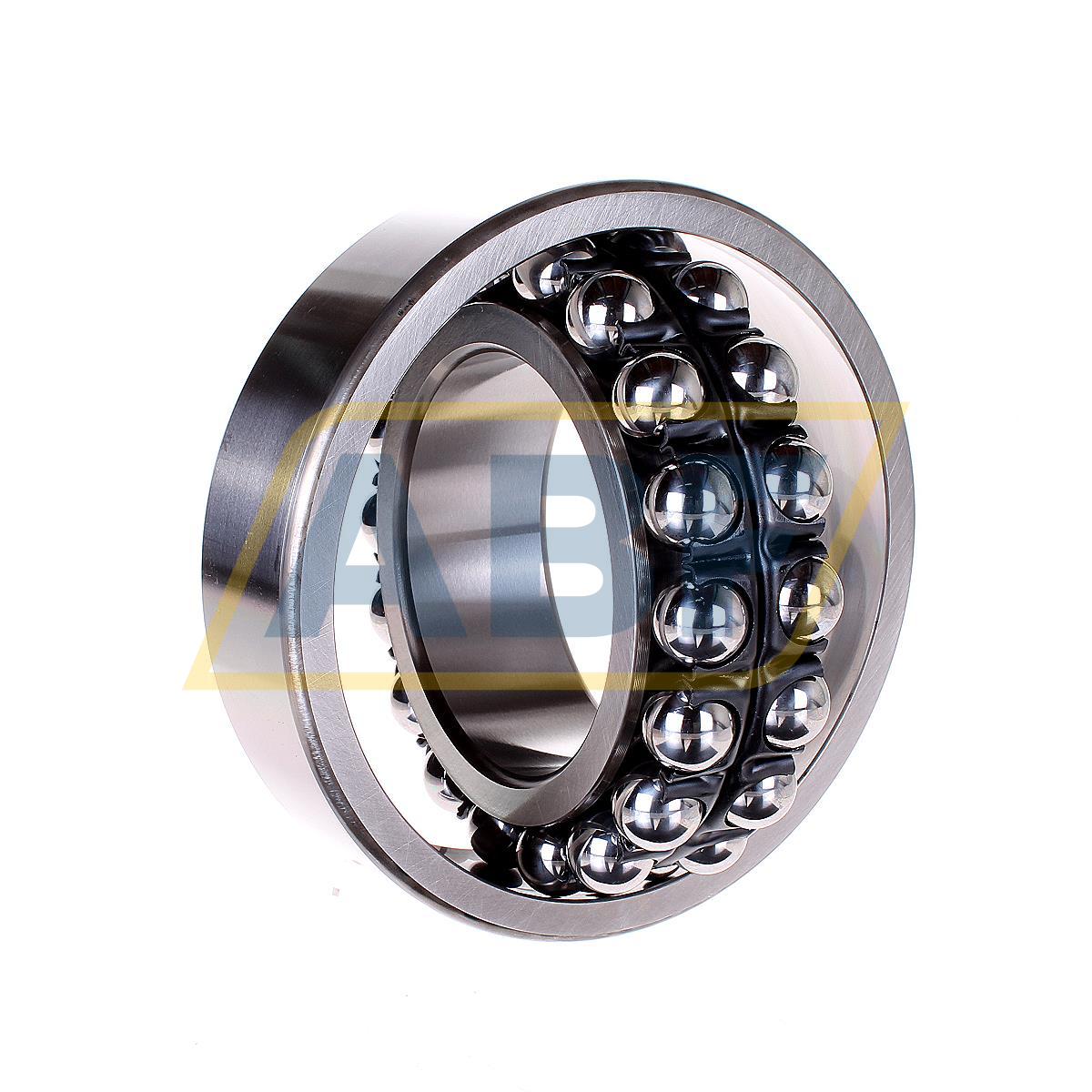

The 2220 SKF belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type without a seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.
These features make the 2220 SKF highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.
