Specifications

• Availability 119 pcs
• Brand INA

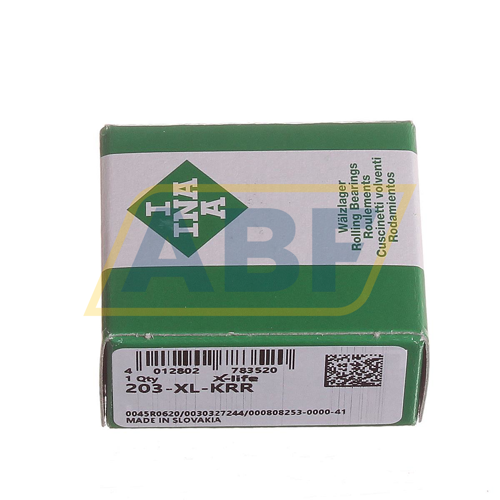

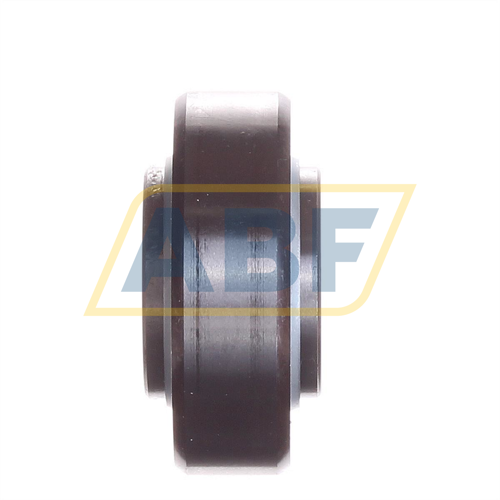

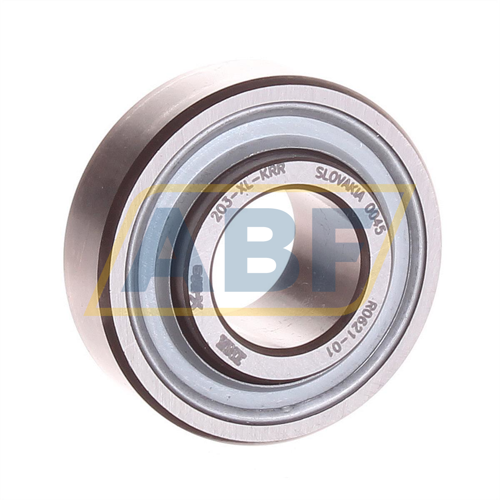

• Item Number 203-XL-KRR INA
• Manufacturer Part Number 0008082530000
• Also known as 203-KRR

• EAN 4012802783520
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 17
• Outer (D) MM 40
• Width (B) MM 18,3
• Inner (d) Inch 0.6693
• Outer (D) Inch 1.5748
• Width (B) Inch 0.7205
• Weight (kg) 0.09

Product Properties

• Bore C - Cylindrical Bore
• Seal 2RS - Rubber Seal on Two Sides
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 18,3
• Radial Static Load Rating C0r (N) 4750
• Radial Dynamic Load Rating Cr (N) 10100
• Basic static load rating, radial (C 0r) "4750.0000"
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Radial insert ball bearings 2..-KRR, cylindrical outer ring, inner ring for fit, R seals on both sides
