Specifications
Availability2 pcs
BrandNIS
Item Number1211TN NIS
CategorySelf Aligning Ball Bearing Double Row
Weight and Dimensions
Inner (d) MM
55
Outer (D) MM
100
Width (B) MM
21
Inner (d) Inch
2.1654
Outer (D) Inch
3.937
Width (B) Inch
0.8268
Weight (kg)
0.705
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
P - Plastic Molded Cage
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Suffix description
TNInjection Moulded Snap-Type Cage Of Polyamide, Ball Centered
Product description

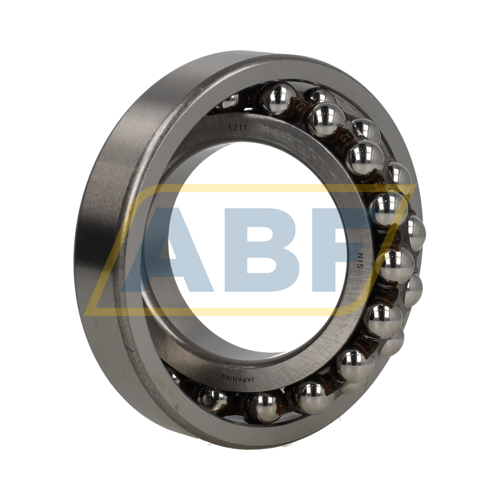

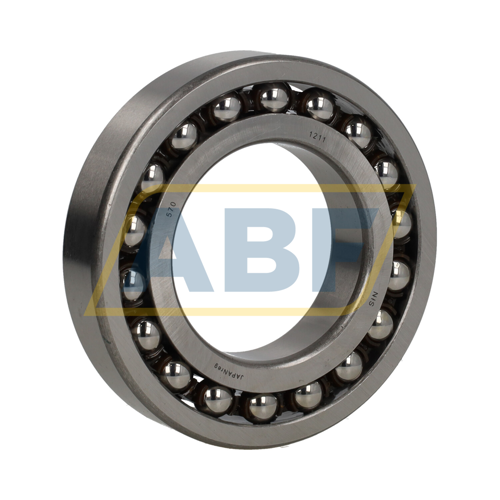

The 1211TN NIS belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type without a seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.
These features make the 1211TN NIS highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.
